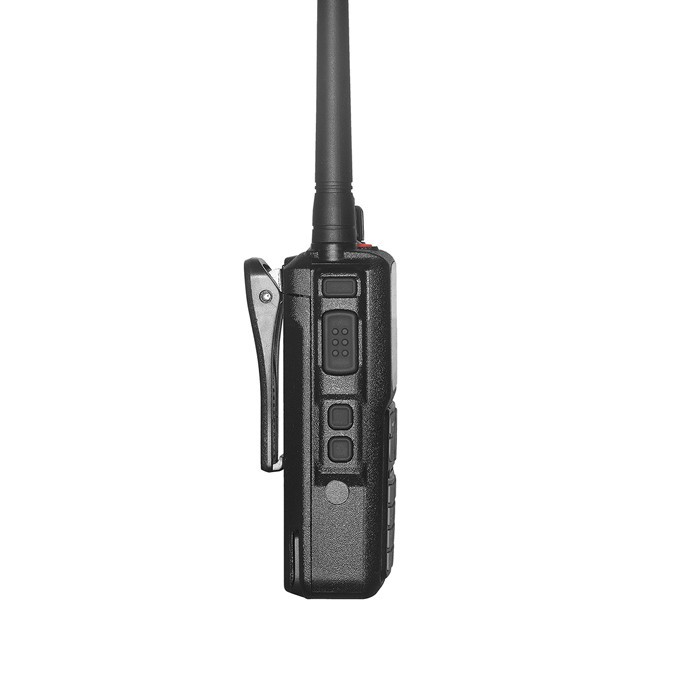

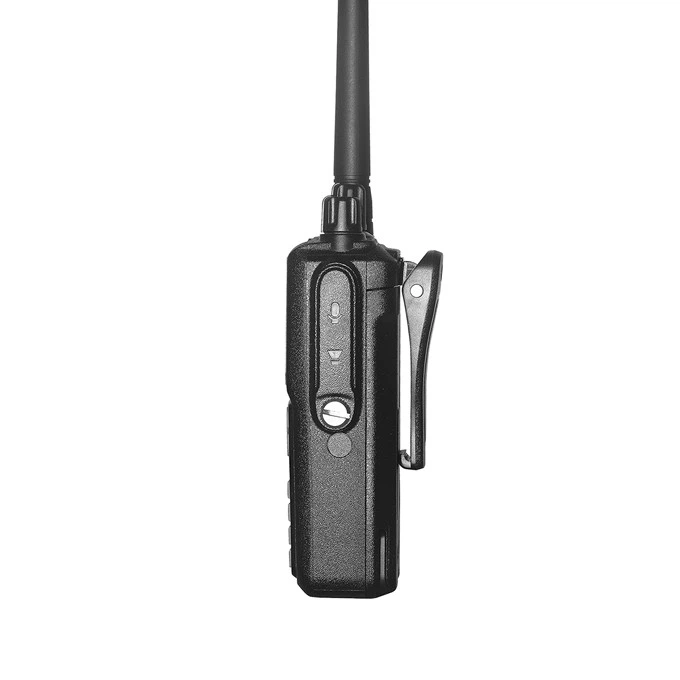

Digital DMR Portable Walkie Talkie

Compatible and stable, DMR digital two-way radio,DM-980 handheld digital radio offers a simple communication solution with 1.77" colour screen, navigation keypad, emergency button, ideal for users operating in manufacturing, facilities management or education environments.

Send Inquiry

Download

Quick Details

Built for dual-mode (Digital+ Analog)

Tier1&Tier2 compatible motorola

Record function

136-174MHz/400-480MHz

1000Channels

Versatile Voice Call (Private call,group call, all call and emergency call)

Digital encryption

SMS function

AMBE5000

Various Analog Signaling Types(DTMF,2 Tone)

Large-size high-definition color display

Multi-functional navigation keypad

Recorder

2tone and DTMF

Display color

Battery capacity 2800mah

CE approve

1024 Channel capacity

64 Zone capacity

Specification:

GENERAL
Frequency Range	400-480MHz/450-520MHz
Operating Temperature	-20℃to +55℃
Frequency Combination	Please lock frequency synthesiz
Frequency Stability	±2.5ppm
Memory Channel	1024
Working voltage	7.4v
Antenna Impedance	50Ω
Audio output power	≤1000mW@16Ω
Dimensions	1265334mm
Weight	194g
TRANSMIT PART
RF power	High: ≤5W(HI) Low: ≤1W(Low)
High: ≤5W(HI) Low: ≤1W(Low)	+/-1.0ppm
Adjacent channel Power	≤-60dB
Free time slot power	TDMA: ≤-57dBm
FM modulation mode	12.5KHZ:11K 0 F 3 E

RECEIVER PART
Analog sensibility	0.35uV/-116dBm(20dB SINAD) / 0.22 uV/-120dB m(Type)
Digital sensibility	0.3 uV/-117.4dBm(BER 5%) / 0.7 uV/-110dBm(BER 1%)
Co-channel Rejection	≥-12dB
Spurious response	TIA603C: 75dB ETSI: 70dB
Adjacent channel selectivity	TIA603C: 65dB ETSI: 60dB
Rated audio power	1w
