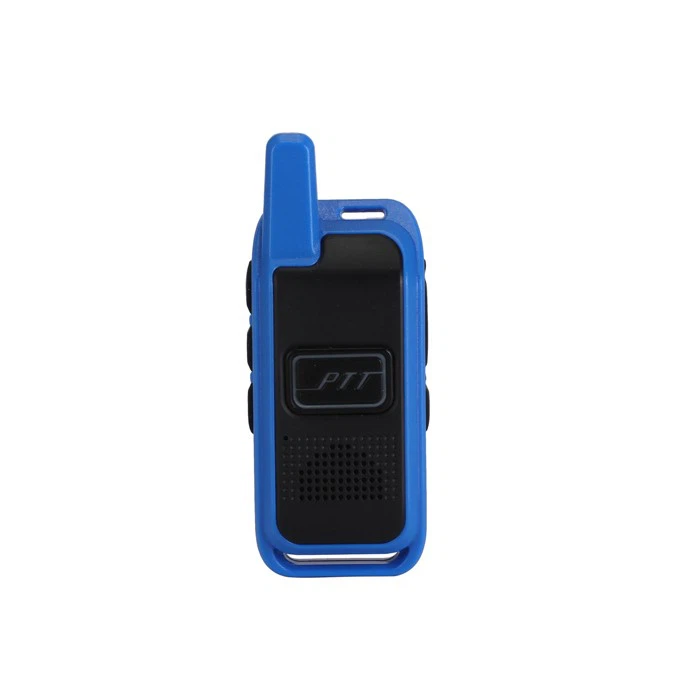

MINI Licence Free Walkie Talkie

T-S1 Vibration Mini PMR446 Two-Way Radio is unique for consume two way radio, innovative design, vibration, breath light, hidden display, his product enables users to fully enjoy the benefits of real-time communication with favorable price.

Send Inquiry

Download

Quick Details

1.Frequency:PMR 446MHZ;

2.Memory Channel 199;

3.Compander;

4.Scrambler;

5.Vibration function;

6.Emergency function;

7.VOX function;

8.CTCSS/DCS Decode&Enclode;

9.Non-standard CTCSS/DCS;

10.Channels and capacity of battery;

11.Power on voice selection;

Specification:

UNITY
Frequency range	446.00625 - 446.09375 MHz
Channels	199
Frequency step	12.5 kHz
Operating temperature	–20°С to +60°C
Voltage	3,7 V (Li-pol)
Antenna	Integrated
Transmiting current	≤500mA
Receiving current	≤100 mA
Weight (without battery)	80 g
Dimensions	95х43х26 mm
TRANSMITER
Output power	0,5 W
Transmitter spurious emission level	no more 0,25 μW
Max frequency deviation	2,5 kHz
Relative frequency instability	3x10⁻⁶
Transmitter emission bandwidth at level: –3 dB –30 dB –60 dB	12,5 kHz 15 kHz 22 kHz
Modulation mode	12КФF3E
Modulation	FM
RECEIVER
Sensitivity	< 0,25 μV (12дБ SINAD)
Intermodulation distortion	50 dB
Audio power	500 mW
