Multiple Mode POC+DMR+Analog UHF Portable POC Radio With GPS Support Realptt Pocstar
DM-68 Multiple Mode POC+DMR+Analog UHF Portable POC Radio With GPS Support Realptt Pocstar is a new generation of POC radio that realized the POC and DMR/analog switch, POC to DMR/analog in repeater function,save the traffic date if communcation distance enough in DMR/analog mode, double PTT is convenient to easy communction.
1.Company Profile
Quanzhou YANTON Electronics Co., Ltd, established in 2009, which is a professional two way radio high-tech Manufacturer, Most of models meet RoHS CE FCC approved, Offer OEM/ODM service. YANTON strictly follow ISO9001 2015 quality management system , Month capacity 60000PCS .
YANTON have own standard production workshop ,laboratory .More than 100+ skilled workers,7000 square meter,non-dust workshop,2 Workshops, 3 product lines, 6 person R & D team, and 7 experienced QC staffs.
YANTON offer DMR radio, POC radio and analog radio, which are suitable for the public security, transportation ,railway, manufacturing, construction, service and other industries,to help our customers improve communication efficiency.
2.Company Advantages
Quality Guaranteed
Our company has passed ISO9001,CE,FCC,RoHS,IP67 Business License, and other qualifications certificates.
Continuous Product Innovation
Our company has applied for several product patents. Over the years, our company positions at producing high-quality, fine technique, cutting-edge products. In addition, high-quality R&D team is constantly improving the technical level, improving equipment, and conducting independent research and development of new products to meet the needs of the market and customers.
Rich Products
Our company has advanced production equipment, such as Oscilloscope,Electronic comprehensive tester,High and low temperature tester,Comprehensive tester,Salt spray tester,Spectrum Analyzer,Digital comprehensive tester,Audio frequency sweep signal generator,Drop tester,Power conversion tester supplements.
24-Hour Service
Our company promises to provide 7×24 hours service after the contract is signed. We will respond within 1 hour after receiving the message, provide solutions to general faults within 8 hours, and solve complex problems within 24 hours.
3.PRODUCT DESCRIPTION

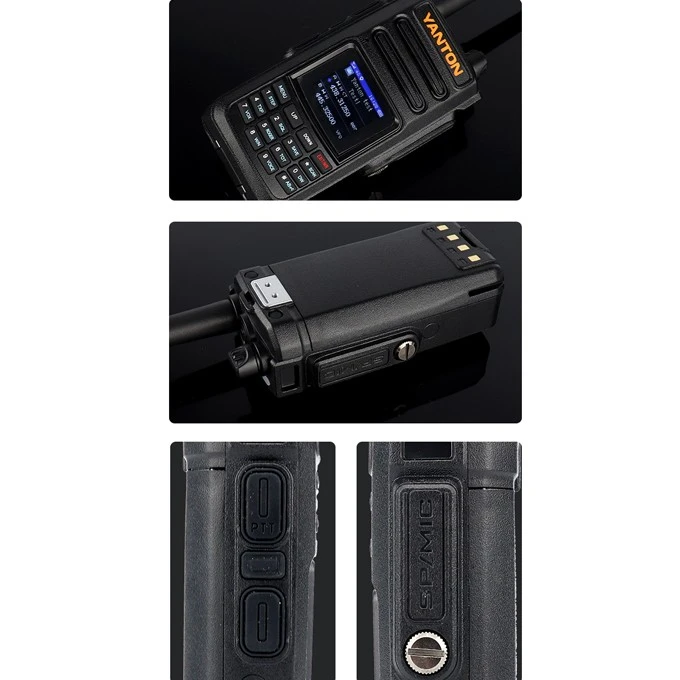

YANTON DM-68 Multiple Mode POC+DMR+Analog UHF Portable POC Radio With GPS Support Realptt Pocstar POC Radio Communication DM-68 supports dual-mode communication, which makes it easier to switch between digital and poc modes.
The first is that POC Radio DM-68 comes with a large color display. The screen size is a 1.77-inch large color display, which provides a clear display and is convenient for viewing user name, frequency, channel name, power, GPS and other information.
The second is long battery life. YANTON realptt POC Radio DM-68 is equipped with a high-capacity battery, 2500mah, which can provide up to 12 hours of continuous use.
Finally, the 4G Pocstar POC Radio DM-68 comes with GPS positioning function. Supporting GPS positioning technology enables users to track their location and navigate easily, and location information can be viewed through the dispatch console. This is very advantageous for urban workers who have network models to use.
4.PRODUCT MAIN FUNCTION
POC+DMR/Analog Mode Function
Individual Call /Group Call/All Call
Double PTT
Friendly Interface Displays The Calling Information
Repeater Function
GPS Function
SOS Function
Digital Encryption
Output Power:5W
1024 Channel, 64 Zone;
Man Down Function
5.SPECIFICATION
|
Frequency Range |
DMR/Analog UHF: 400-480MHz or VHF136-174MHz LTE 4G B1/B3/B7/B8/B20 WCDMA: B1/B8 GSM/GPRS: B3/B8 or LTE 4G B2/B4/B5/B12/B17 WCDMA B2/B5 Or LTE 4G B1/B2/B3/B5/B7/B8/B28/B40 WCDMA:B1/5/8 GSM:B2/3/5/8 |
|
Network System |
LTE FDD/WCDMA/GSM/GPRS |
|
Working Mode |
Simplex |
|
LCD Display |
1.77inches |
|
Operating Voltage |
7.4V |
|
Battery Capacity |
2800mAh(Li-Ion) |
|
Battery Life |
About 15-28h |
|
Mode |
Dual Mode and Dual Standby |
|
Operating Temperature |
(-)20 - (+)60°C |
|
Store Temperature |
(-)30 - (+)80°C |
|
RX Sensitivity |
LTE≤-96 dBm; WCDMA 900MHz: ≤-108 dBm; WCDMA 2100MHz: ≤-109 dBm; GSM 900MHz/1800MHz: ≤-106 dBm; |
|
Dimension |
136*57*39mm |
|
Weight |
220g |
|
Occupied Bandwidth |
≤1.48MHz |
|
RF Power |
≤30dBm |
|
Frequency Error |
±300Hz |
|
Audio Output |
500mW |
|
Antenna Impedence |
50ohm |
6.FAQ
Q1: What is MOQ(Minimum order quantity)?
A: we recommend you order 2pcs for sample test that would be better.
Q2: Do you accept customized?
A: Yes, we can design the packing box and LOGO mark as your request, OEM&ODM welcomed.
Q3:Could you offer free sample to test?
A: In general, customers need to pay the sample fee first, but when your order reach required amount, we refund the sample cost for you.
Q4: When can you ship the items?
A:1-2day for sample,3-30days for bulk order, depends on the quantity.
Q5: When can I find tracking information on internet?
A: Usually, we will give you the tracking number and you can find the information on internet in 2 days.
Q6. How do you ensure your quality?
A:Before delivery, we will check the items' quality strictly one by one, life-warranty for radio host & accessories, but we could not ensure some unpredictable reason occur please contact us immediately when you get defective, thanks.
