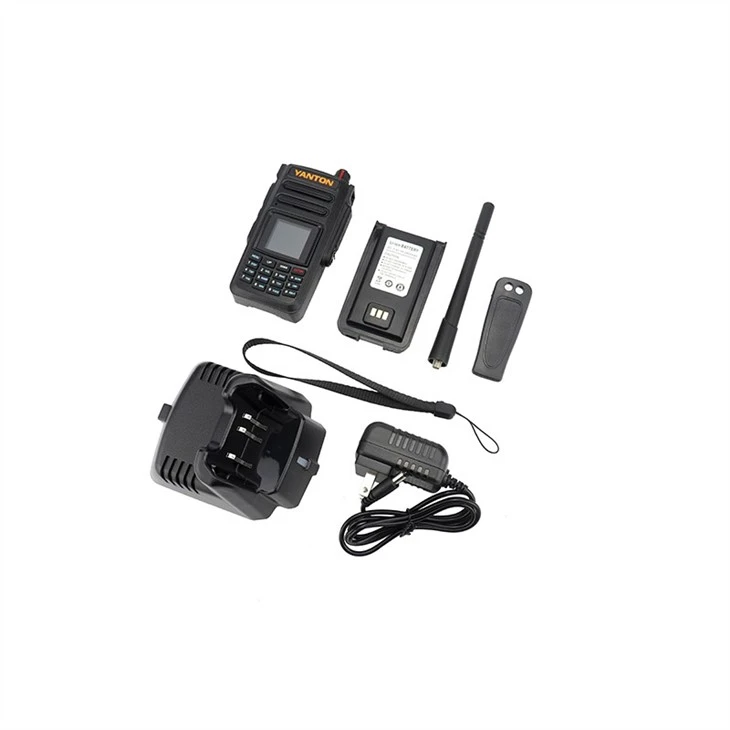

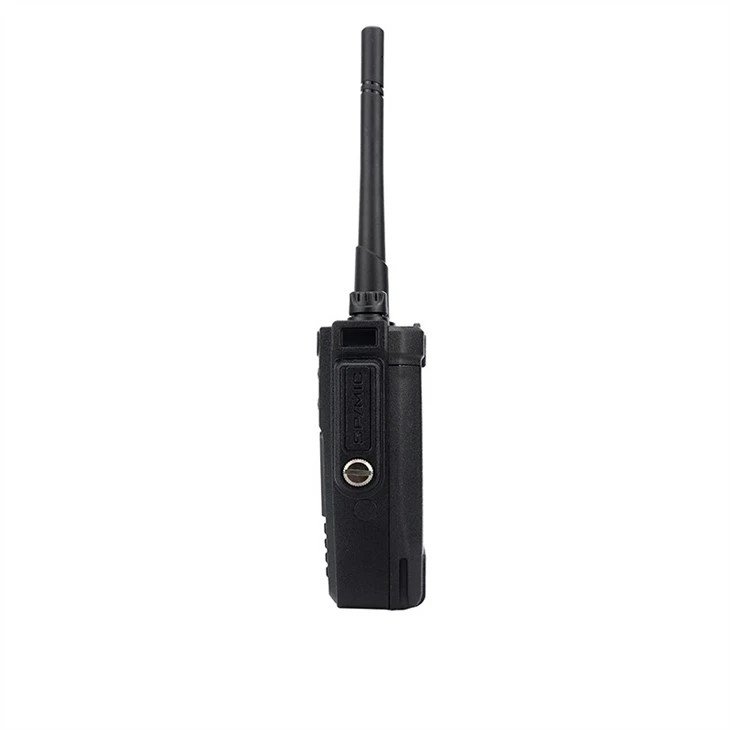

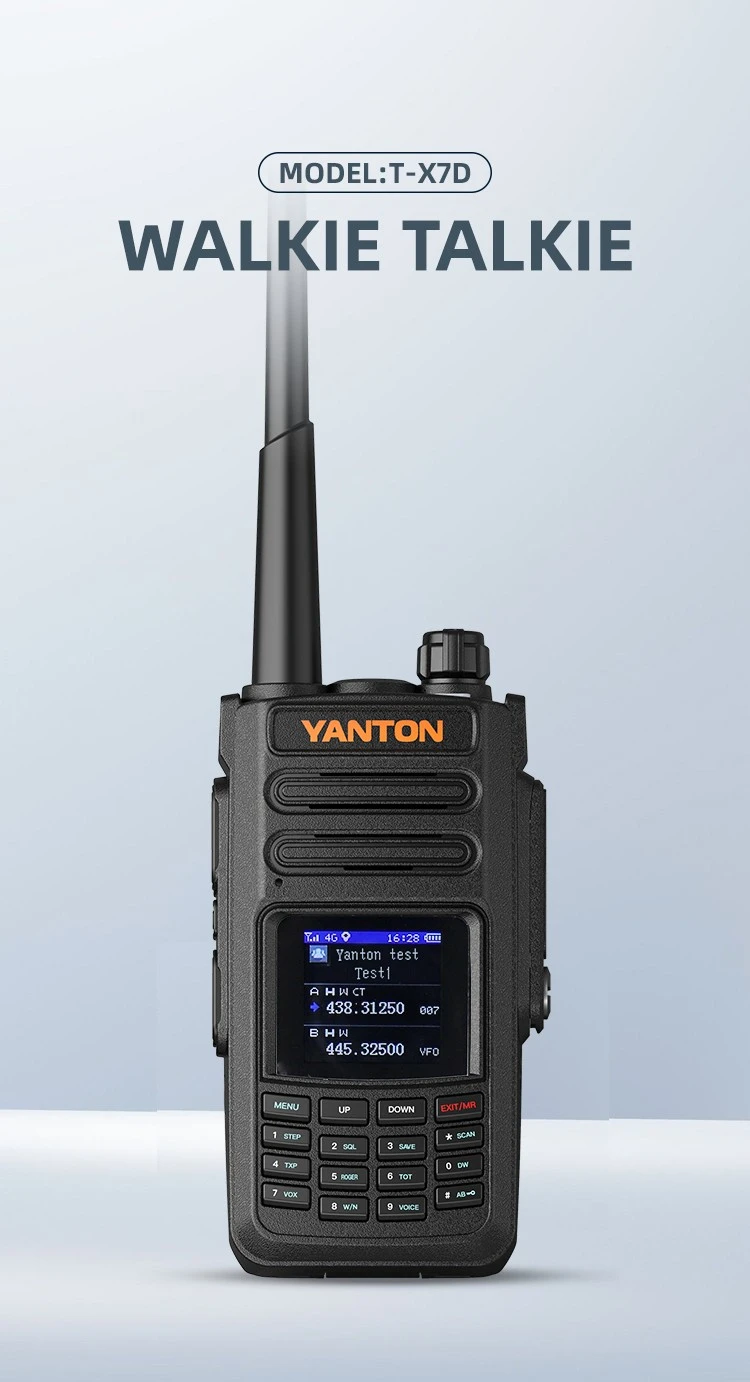

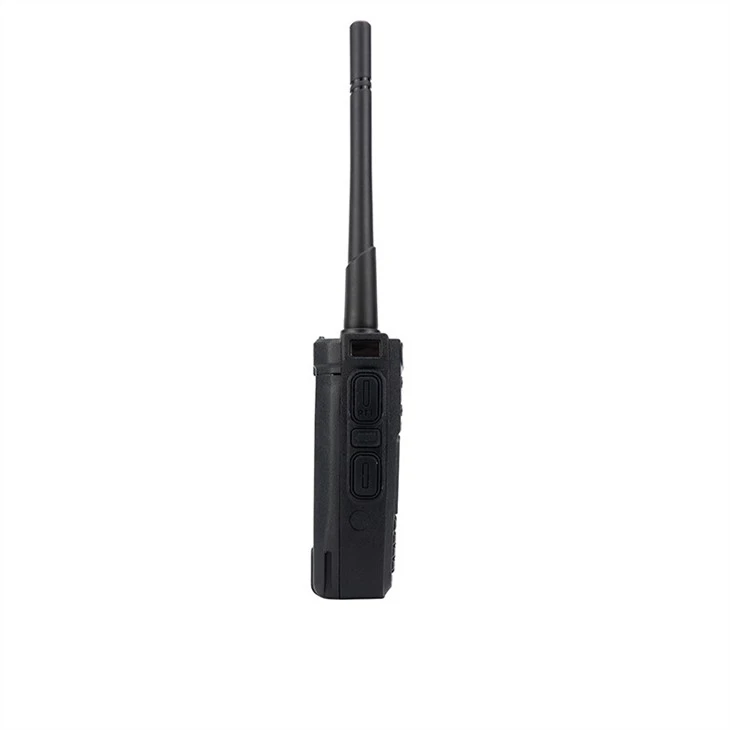

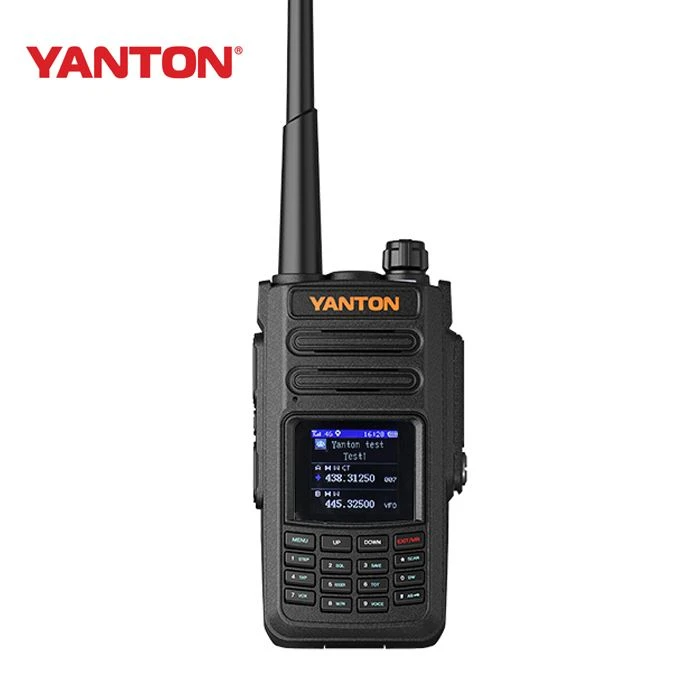

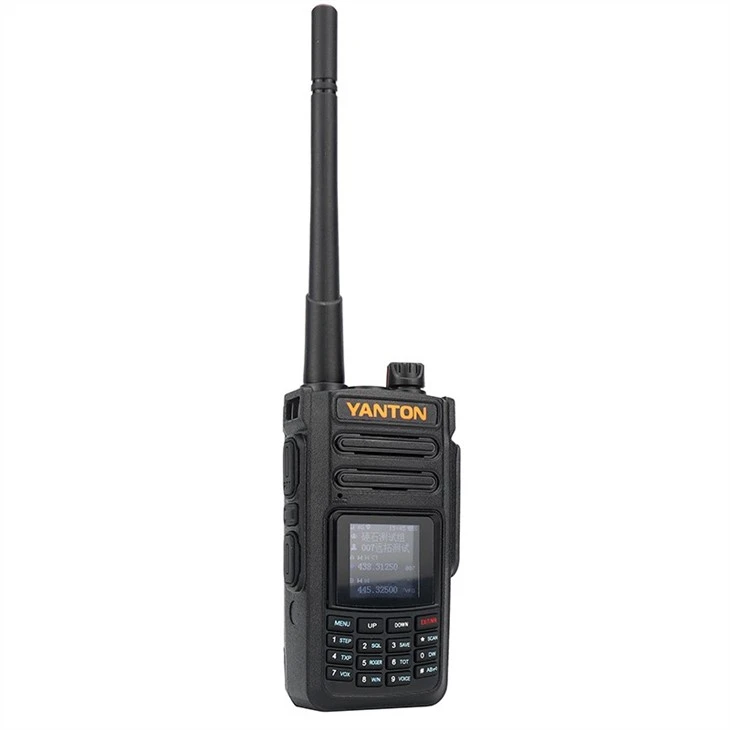

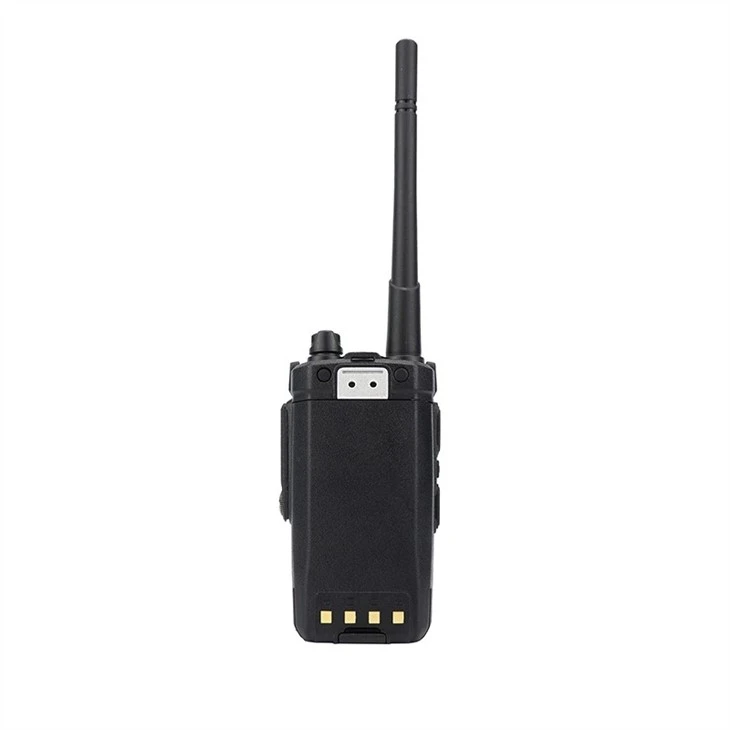

4G POC Walkie Talkie

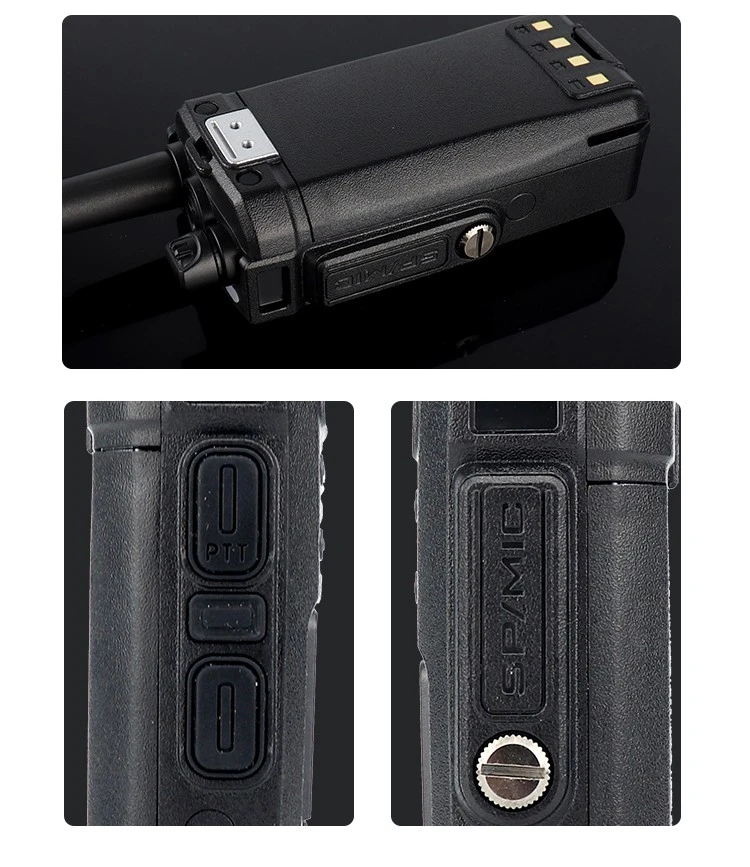

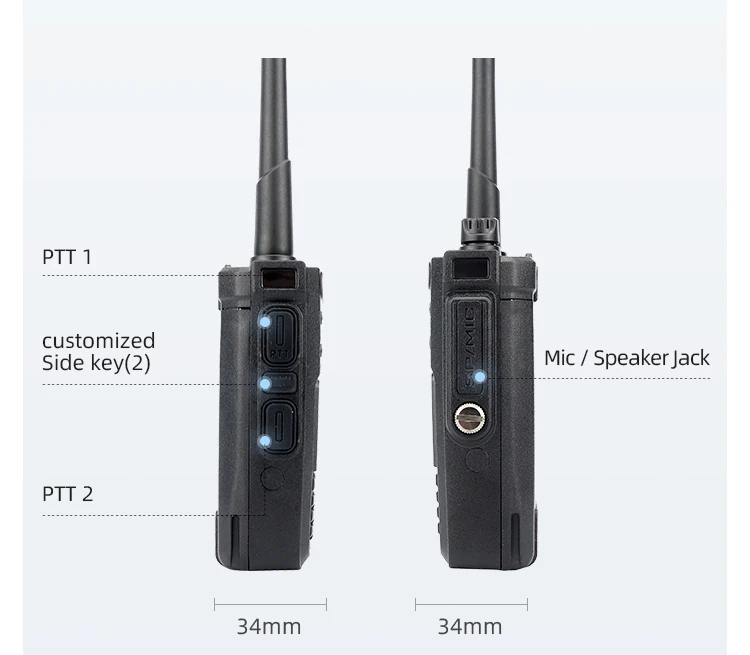

T-X7D is a new generation of POC radio that realized the POC and analog switch, POC to analog in repeater function,save the traffic date if communcation distance enough in analog mode, double PTT is convenient to easy communction.

Send Inquiry

Download

Specification

GENERAL
(U)SIM/SIMU	Standard SIM card interface 3V SIM card and 1.8V SIM card
Operating Temperature	-30℃ to +75℃
UMTS Band	HSDPA/WCDMA:2100/1900/850(900)MHz
Average current	About 540mA@UMTS 2100 About 239mA@GSM 900
Operation current	About 0.6A
Working voltage	DC 7.4V
Standby current	About 5mA@UMTS About 5mA@GSM

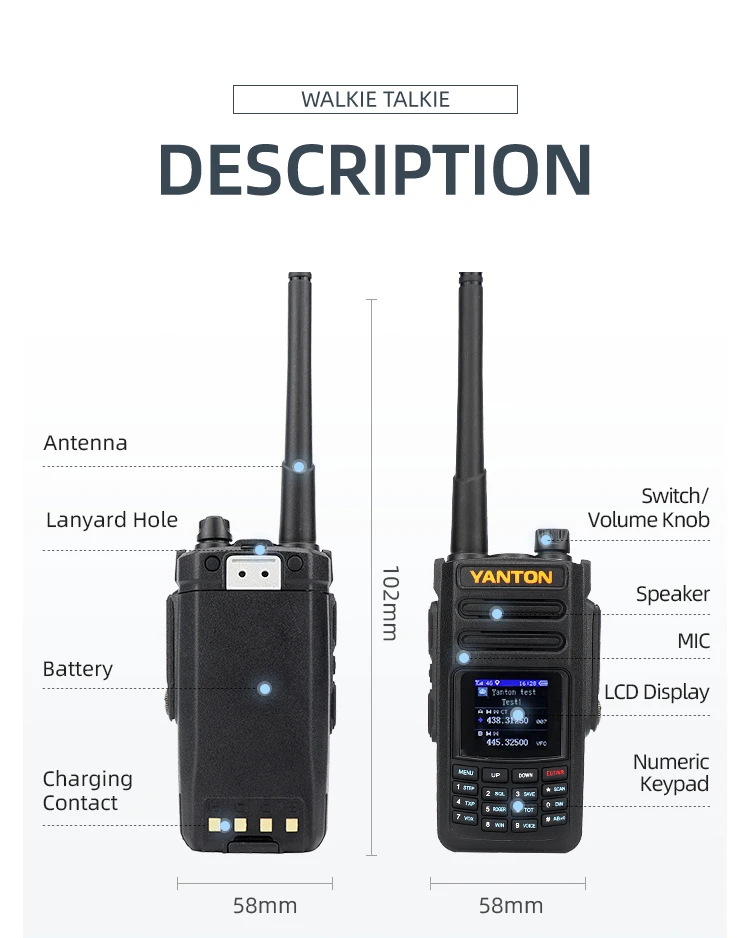

Dimensions	102mm58mm34mm
Weight	About 194g

TRANSMIT PART
RF power	Public network mode:About 2.2uw; Analog mode:5W.
Transceiver power	UMTS2100/1900/900/850:Power Class 3 (+24dBm +2.5/-1.5dBm) EDGE 850MHz/900MHz: Power Class E2 (+27dBm +4.5/-1.5dBm) EDGE 1800MHz/1900MHz: Power Class E2 (+26dBm +4.5/-2.5dBm)
UART Interface	8-wires UART
