Ear Hook Mini Walkie Talkie

1.Company Profile

Quanzhou YANTON Electronics Co., Ltd, established in 2009, which is a professional two way radio high-tech Manufacturer, Most of models meet RoHS CE FCC approved, Offer OEM/ODM service. YANTON strictly follow ISO9001 2015 quality management system , Month capacity 60000PCS .

YANTON have own standard production workshop ,laboratory .More than 100+ skilled workers,7000 square meter,non-dust workshop,2 Workshops, 3 product lines, 6 person R & D team, and 7 experienced QC staffs.

YANTON offer DMR radio, POC radio and analog radio, which are suitable for the public security, transportation ,railway, manufacturing, construction, service and other industries,to help our customers improve communication efficiency.

2.Company Advantages

Quality Guaranteed

Our company has passed ISO9001,CE,FCC,RoHS,IP67 Business License, and other qualifications certificates.

Continuous Product Innovation

Our company has applied for several product patents. Over the years, our company positions at producing high-quality, fine technique, cutting-edge products. In addition, high-quality R&D team is constantly improving the technical level, improving equipment, and conducting independent research and development of new products to meet the needs of the market and customers.

Rich Products

Our company has advanced production equipment, such as Oscilloscope,Electronic comprehensive tester,High and low temperature tester,Comprehensive tester,Salt spray tester,Spectrum Analyzer,Digital comprehensive tester,Audio frequency sweep signal generator,Drop tester,Power conversion tester supplements.

24-Hour Service

Our company promises to provide 7×24 hours service after the contract is signed. We will respond within 1 hour after receiving the message, provide solutions to general faults within 8 hours, and solve complex problems within 24 hours.

3.PRODUCT DESCRIPTION

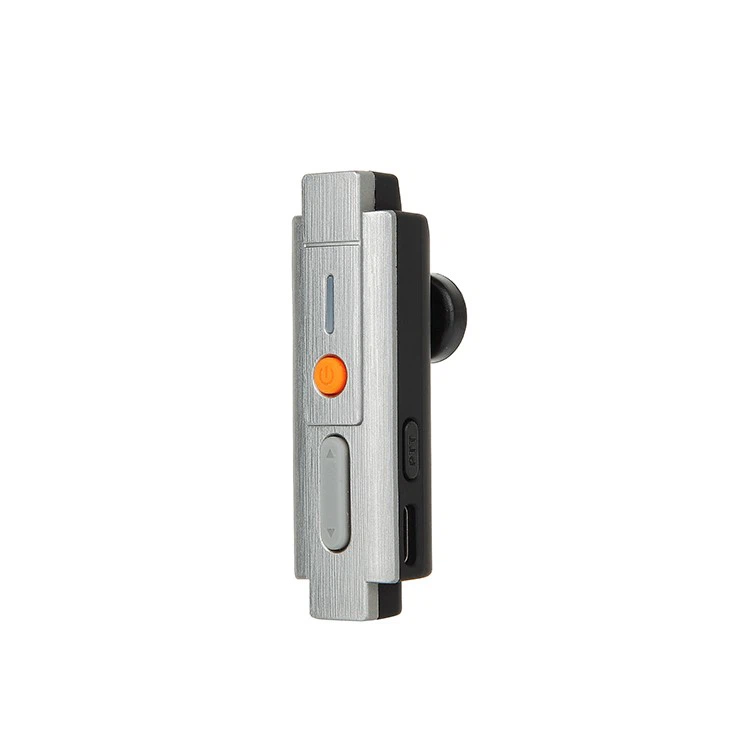

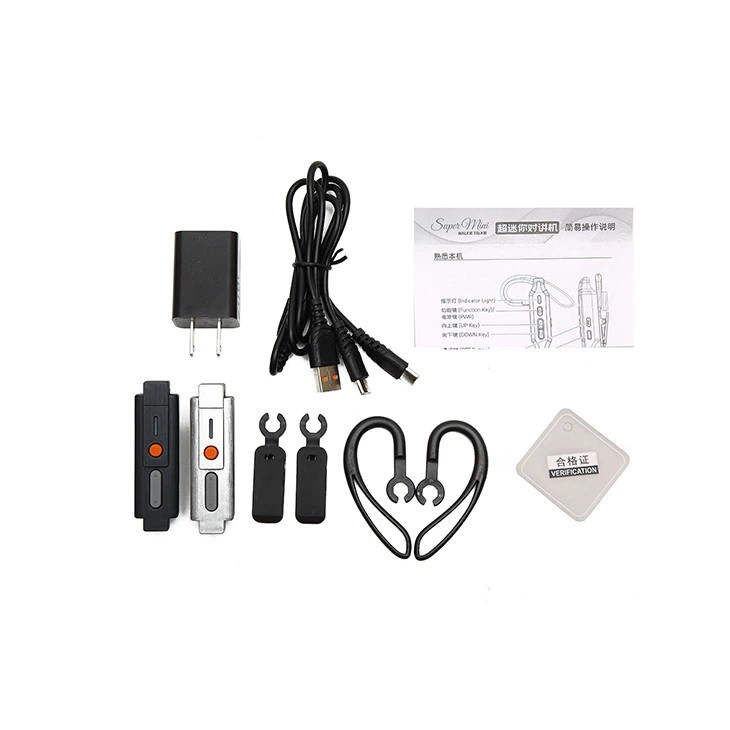

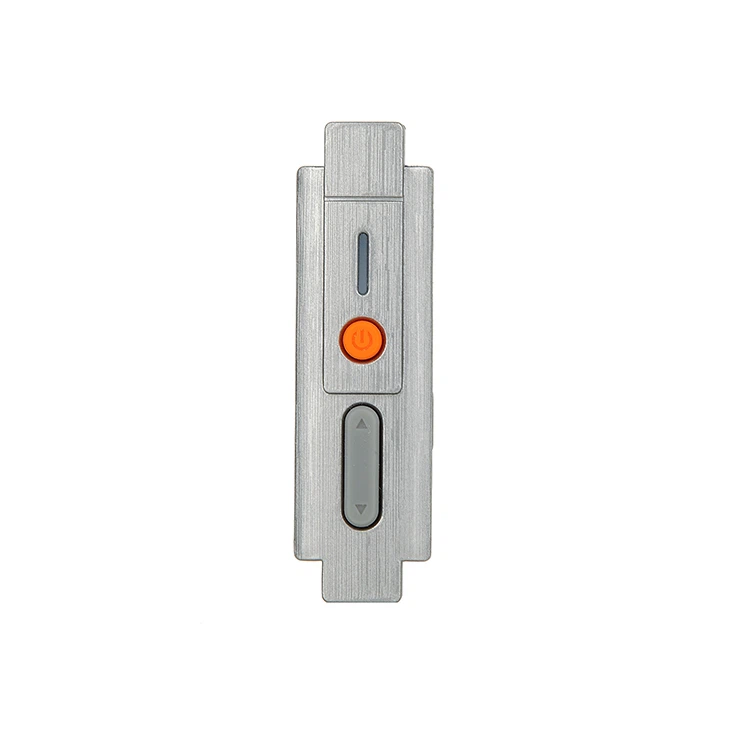

YANTON Ear Hook Mini Walkie Talkie W5-2 is an ear-hook headset. It has a compact size, simple and durable appearance, and is available in black and white. The output power of Ear Hook Mini Walkie Talkie W5-2 is 1W, there are 20 channels, and there are 5 levels to adjust the volume. There is also a Jump frequency function, and it also supports PC program Software. In terms of charging,Ear Hook Walkie Talkie W5-2 is equipped with a USB Type-C charger, which can be charged at any time; the built-in lithium battery is 450 mAh, and the battery life is about 8-10 hours. This is the best choice for restaurants and service industries. In addition, it is also suitable for a variety of outdoor activities, including hiking, camping, cycling and fishing. In small places for family camping and gatherings, it can be worn directly on the ears, or it can be connected to an external headset, clipped on the collar, and the VOX function can be turned on to achieve smooth communication.

4.PRODUCT MAIN FUNCTION

Dual purpose : ear hook or clip type

UHF 400-480MHZ

22 Channels

Output Power 0.5W

5 Level Volume Adjustment

Special Tone (Jump frequency)

95*19*17mm

PC Programming

5.SPECIFICATION

GENERAL
Frequency Range	400-480MHz
Operating Temperature	-20℃to +55℃
Frequency Combination	please lock frequency synthesize
Frequency Stability	±2.5ppm
Memory Channel	20
Working voltage	3.7V
Antenna Impedance	50Ω
Operating Mode	simplex of co-frequency or alien
Dimensions	95*19*17mm
Weight	22g

TRANSMIT PART
RF power	1W
Modulate Mode	F3E
Max.Freq.Deviation	≤5KHz
Remain Wave Radiation	＜-60dB
Transmitting Current	≤1000mA

RECEIVER PART
Sensitivity	＜0.20uV (12dB SINAD)
Squelch Sensitivity	＜0.20uV
Intermodulation Antijamming	50dB
Audio Power output	500mW
Receiving Current	≤100mA
Squelch Standby	20mA

6.FAQ

Q1: What is MOQ(Minimum order quantity)?

A: we recommend you order 2pcs for sample test that would be better.

Q2: Do you accept customized?

A: Yes, we can design the packing box and LOGO mark as your request, OEM&ODM welcomed.

Q3:Could you offer free sample to test?

A: In general, customers need to pay the sample fee first, but when your order reach required amount, we refund the sample cost for you.

Q4: When can you ship the items?

A:1-2day for sample,3-30days for bulk order, depends on the quantity.

Q5: When can I find tracking information on internet?

A: Usually, we will give you the tracking number and you can find the information on internet in 2 days.

Q6. How do you ensure your quality?

A:Before delivery, we will check the items' quality strictly one by one, life-warranty for radio host & accessories, but we could not ensure some unpredictable reason occur please contact us immediately when you get defective, thanks.
