Professional Walkie Talkie System

1.Company Profile

Quanzhou YANTON Electronics Co., Ltd, established in 2009, which is a professional two way radio high-tech Manufacturer, Most of models meet RoHS CE FCC approved, Offer OEM/ODM service. YANTON strictly follow ISO9001 2015 quality management system , Month capacity 60000PCS .

YANTON have own standard production workshop ,laboratory .More than 100+ skilled workers,7000 square meter,non-dust workshop,2 Workshops, 3 product lines, 6 person R & D team, and 7 experienced QC staffs.

YANTON offer DMR radio, POC radio and analog radio, which are suitable for the public security, transportation ,railway, manufacturing, construction, service and other industries,to help our customers improve communication efficiency.

2.Company Advantages

Quality Guaranteed

Our company has passed ISO9001,CE,FCC,RoHS,IP67 Business License, and other qualifications certificates.

Continuous Product Innovation

Our company has applied for several product patents. Over the years, our company positions at producing high-quality, fine technique, cutting-edge products. In addition, high-quality R&D team is constantly improving the technical level, improving equipment, and conducting independent research and development of new products to meet the needs of the market and customers.

Rich Products

Our company has advanced production equipment, such as Oscilloscope,Electronic comprehensive tester,High and low temperature tester,Comprehensive tester,Salt spray tester,Spectrum Analyzer,Digital comprehensive tester,Audio frequency sweep signal generator,Drop tester,Power conversion tester supplements.

24-Hour Service

Our company promises to provide 7×24 hours service after the contract is signed. We will respond within 1 hour after receiving the message, provide solutions to general faults within 8 hours, and solve complex problems within 24 hours.

3.PRODUCT DESCRIPTION

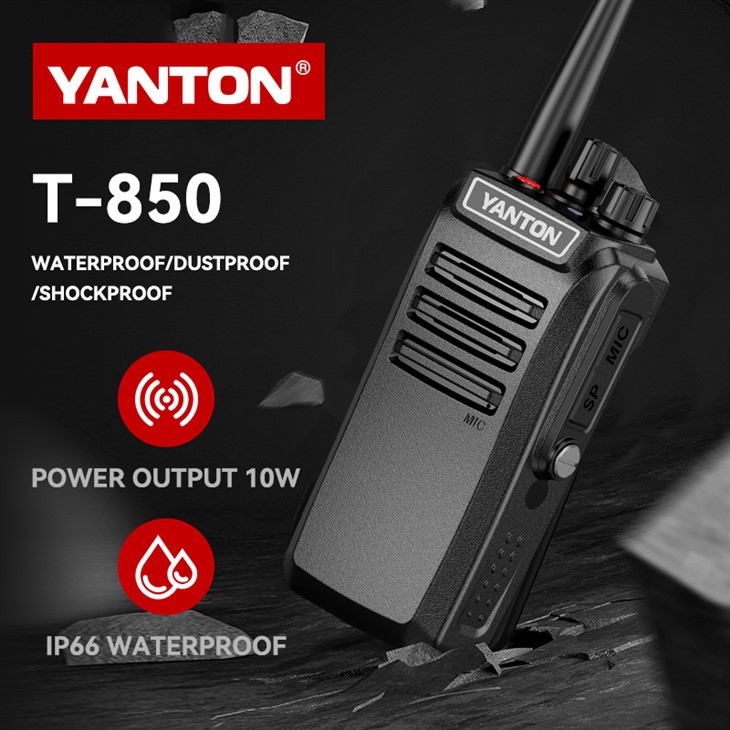

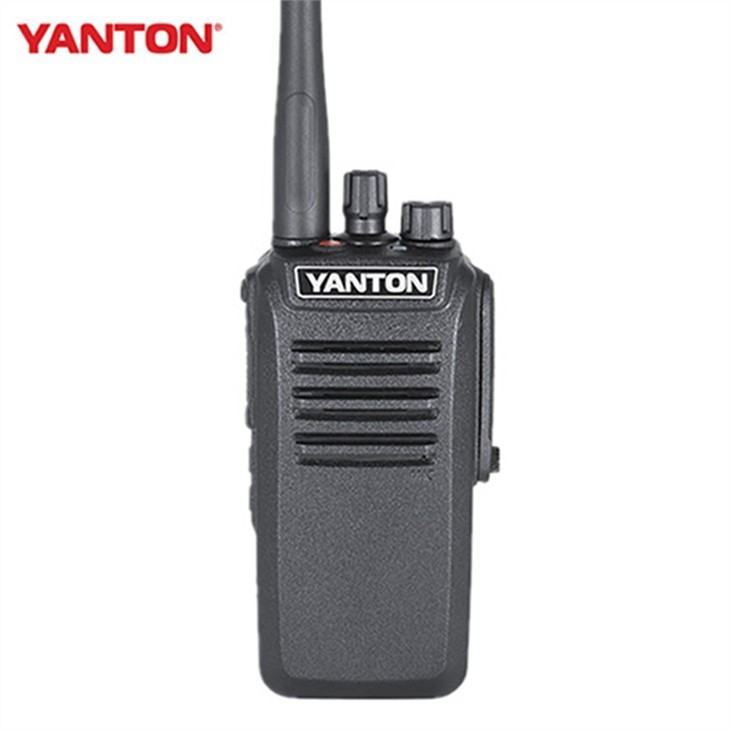

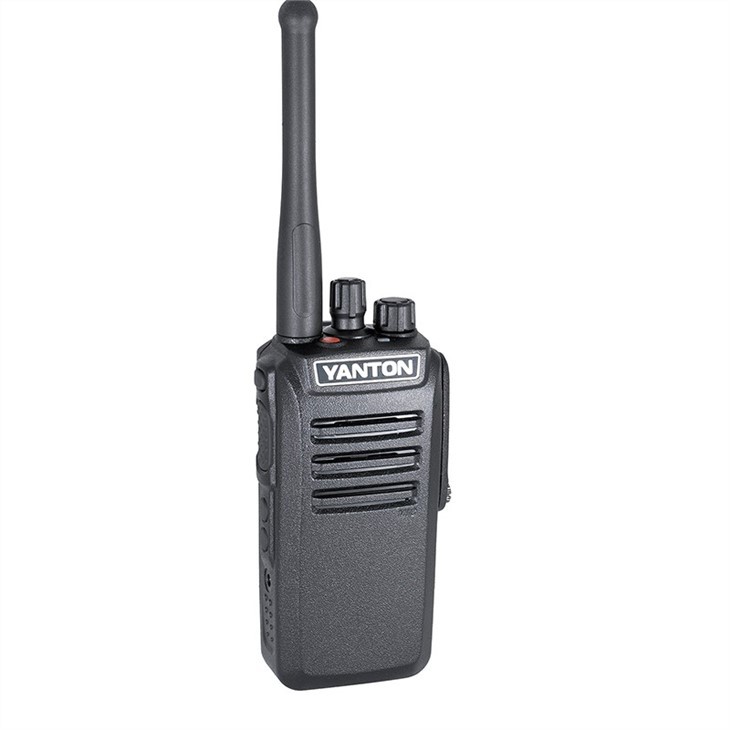

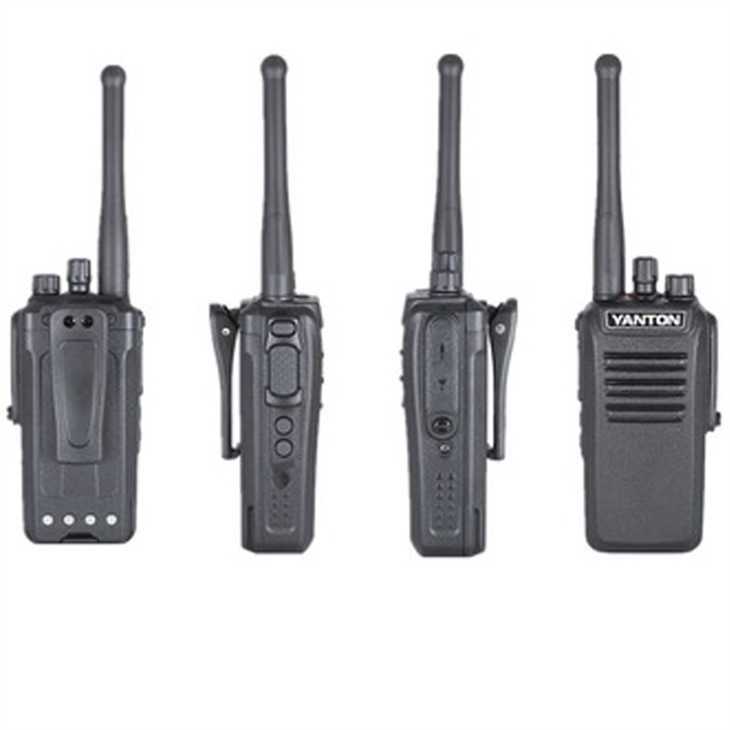

YANTON Professional Walkie Talkie System T-850 is a walkie talkie with 136-174MHz/220-260MHZ/350-390MHz/400-480MHz multi-band selection.
Walkie Talkie System T-850 output power is 10W, and it has long distance long range.Professional Walkie Talkie System T-850 has a sturdy and drop-proof appearance, which is loved by many professional users and is especially suitable for use in construction sites, security sites, etc. It can be connected to an external microphone and headset, and supports computer programming software programming. In addition, it has a relatively high battery capacity, a 2800 mAh lithium battery, which makes T-850 have a longer battery life, and can be used for more than 12 hours on a single charge.

4.PRODUCT MAIN FUNCTION

Frequency range:136-174MHz/220-260MHZ/350-390MHz/400-480MHz

16 Memory Channels

Output power 10W/5W/2W

CTCSS&DCS non-standard code

DTMF/PTT ID/2-Tone

Monitor / Monitor Momentary

Squelch level report, Squelch level adjustment

Emergency Alarm

Remote Kill,Stun,Activate&Revive

Tail Tone Eliminate

5.SPECIFICATION

GENERAL
Frequency Range	136-174MHz/400-480MHz
Operating Temperature	-20℃to +55℃
Frequency Combination	please lock frequency synthesize
Frequency Stability	±2.5ppm
Memory Channel	16
Working voltage	7.4V
Antenna Impedance	50Ω
Operating Mode	simplex of co-frequency or alien
Dimensions	122*60*38mm
Weight	232g

TRANSMIT PART
RF power	10w
Modulate Mode	F3E
Max.Freq.Deviation	≤5KHz
Remain Wave Radiation	＜-60dB
Transmitting Current	≤1000mA

RECEIVER PART
Sensitivity	＜0.20uV (12dB SINAD)
Squelch Sensitivity	＜0.20uV
Intermodulation Antijamming	50dB
Audio Power output	500mW
Receiving Current	≤100mA
Squelch Standby	20mA

6.FAQ

Q1: What is MOQ(Minimum order quantity)?

A: we recommend you order 2pcs for sample test that would be better.

Q2: Do you accept customized?

A: Yes, we can design the packing box and LOGO mark as your request, OEM&ODM welcomed.

Q3:Could you offer free sample to test?

A: In general, customers need to pay the sample fee first, but when your order reach required amount, we refund the sample cost for you.

Q4: When can you ship the items?

A:1-2day for sample,3-30days for bulk order, depends on the quantity.

Q5: When can I find tracking information on internet?

A: Usually, we will give you the tracking number and you can find the information on internet in 2 days.

Q6. How do you ensure your quality?

A:Before delivery, we will check the items' quality strictly one by one, life-warranty for radio host & accessories, but we could not ensure some unpredictable reason occur please contact us immediately when you get defective, thanks.
