Hidden Display Portable Radio Walkie Talkie

1.Company Profile

Quanzhou YANTON Electronics Co., Ltd, established in 2009, which is a professional two way

radio high-tech Manufacturer, Most of models meet RoHS CE FCC approved, Offer OEM/ODM

service. YANTON strictly follow ISO9001 2015 quality management system , Month capacity

60000PCS .

YANTON have own standard production workshop ,laboratory .More than 100+ skilled workers,

7000 square meter,non-dust workshop,2 Workshops, 3 product lines, 6 person R & D team, and

7 experienced QC staffs.

YANTON offer DMR radio, POC radio and analog radio, which are suitable for the public security,

transportation ,railway, manufacturing, construction, service and other industries,to help our

customers improve communication efficiency.

2.Company Advantages

Quality Guaranteed

Our company has passed ISO9001,CE,FCC,RoHS,IP67 Business License, and other qualifications certificates.

Continuous Product Innovation

Our company has applied for several product patents. Over the years, our company positions at producing high-quality, fine technique, cutting-edge products. In addition, high-quality R&D team is constantly improving the technical level, improving equipment, and conducting independent research and development of new products to meet the needs of the market and customers.

Rich Products

Our company has advanced production equipment, such as Oscilloscope,Electronic comprehensive tester,High and low temperature tester,Comprehensive tester,Salt spray tester,Spectrum Analyzer,Digital comprehensive tester,Audio frequency sweep signal generator,Drop tester,Power conversion tester supplements.

24-Hour Service

Our company promises to provide 7×24 hours service after the contract is signed. We will respond within 1 hour after receiving the message, provide solutions to general faults within 8 hours, and solve complex problems within 24 hours.

3.PRODUCT DESCRIPTION

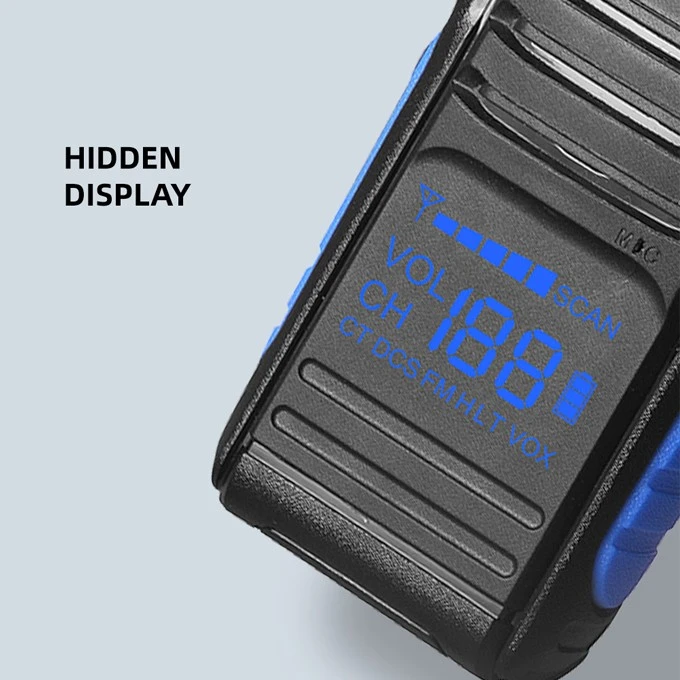

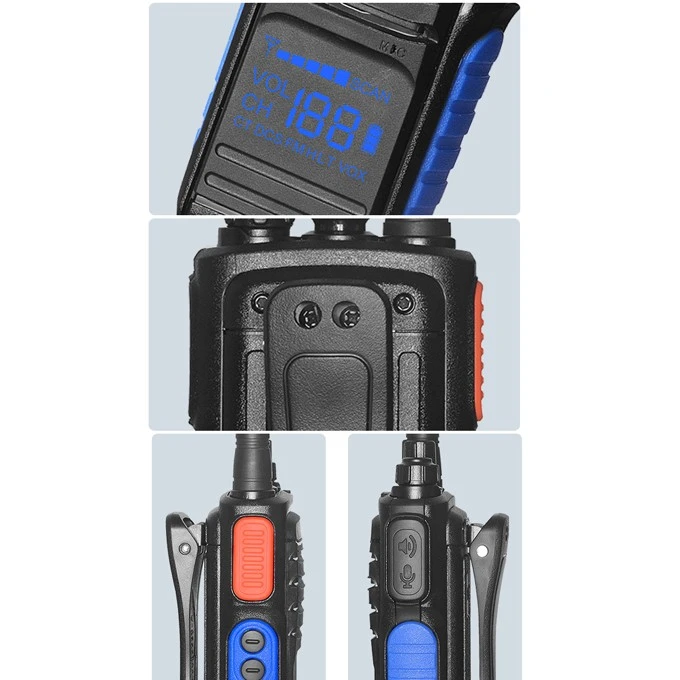

YANTON T-328 is a portable radio walkie talkie with hidden display.
One of the advantage of the Hidden Display Portable Radio Walkie Talkie T-328 is its compact and lightweight design, making it easy to carry and use on the go. PMR Radio T-328 is best for outdoor adventures such as hiking, camping, and even sports activities like skiing or snowboarding.
Another good feature of the 0.5W PMR Radio T-328 is that it has a long battery life, ensuring that you can stay connected for extended periods without needing to recharge. Battery capacity is 2000mah.This is a particularly useful feature for those who work in industries where communication is critical, such as security, hospitality, or event management.
Moreover, the YANTON License Free PMR Radio T-328 is incredibly simple to use, with intuitive controls and a user-friendly interface. It makes it easy for people of all ages to operate and communicate.That's a good choise for workers.

4.PRODUCT MAIN FUNCTION

Output Power:3W

Frequency Range: 136-174MHz/400-480MHz

199 Memory Channels

VOX Function

CTCSS/DCS

High/Low Power Selective

Emergency Alarm

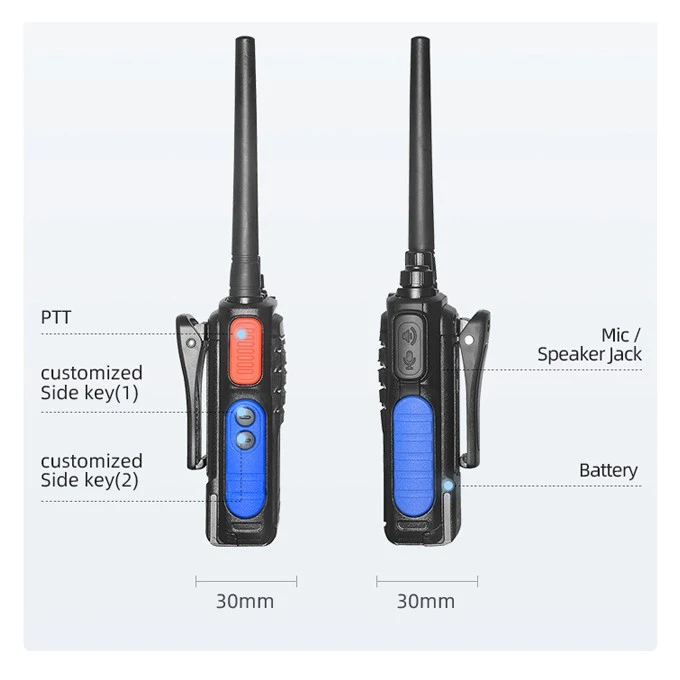

Side Key Assignment

0-9 Grades Squelch Level Setting

FM Radio (87.5-108MHz)

5.SPECIFICATION

GENERAL
Frequency Range	136-174MHz/400-480MHz
Operating Temperature	-20℃to +55℃
Frequency Combination	please lock frequency synthesize
Frequency Stability	±2.5ppm
Memory Channel	199
Working voltage	7.4v
Antenna Impedance	50Ω
Operating Mode	simplex of co-frequency or alien

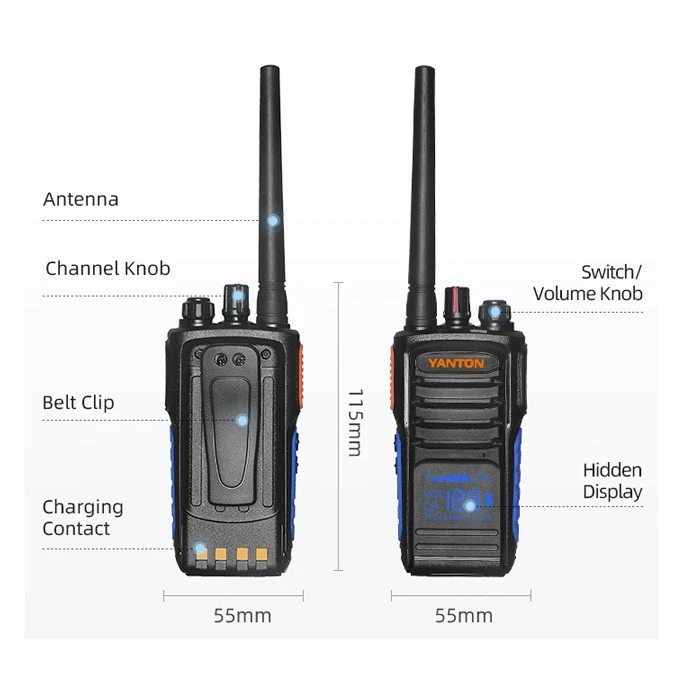

Dimensions	115*55*30mm
Weight	220g

TRANSMIT PART
RF power	4w
Modulate Mode	F3E
Max.Freq.Deviation	≤5KHz
Remain Wave Radiation	＜-60dB
Transmitting Current	≤1000mA

RECEIVER PART
Sensitivity	＜0.20uV (12dB SINAD)
Squelch Sensitivity	＜0.20uV
Intermodulation Antijamming	50dB
Audio Power output	500mW
Receiving Current	≤100mA
Squelch Standby	20mA







6.FAQ

Q1: What is MOQ(Minimum order quantity)?

A: we recommend you order 2pcs for sample test that would be better.

Q2: Do you accept customized?

A: Yes, we can design the packing box and LOGO mark as your request, OEM&ODM welcomed.

Q3:Could you offer free sample to test?

A: In general, customers need to pay the sample fee first, but when your order reach required amount, we refund the sample cost for you.

Q4: When can you ship the items?

A:1-2day for sample,3-30days for bulk order, depends on the quantity.

Q5: When can I find tracking information on internet?

A: Usually, we will give you the tracking number and you can find the information on internet in 2 days.

Q6. How do you ensure your quality?

A:Before delivery, we will check the items' quality strictly one by one, life-warranty for radio host & accessories, but we could not ensure some unpredictable reason occur please contact us immediately when you get defective, thanks.
